Espresso Island Bar

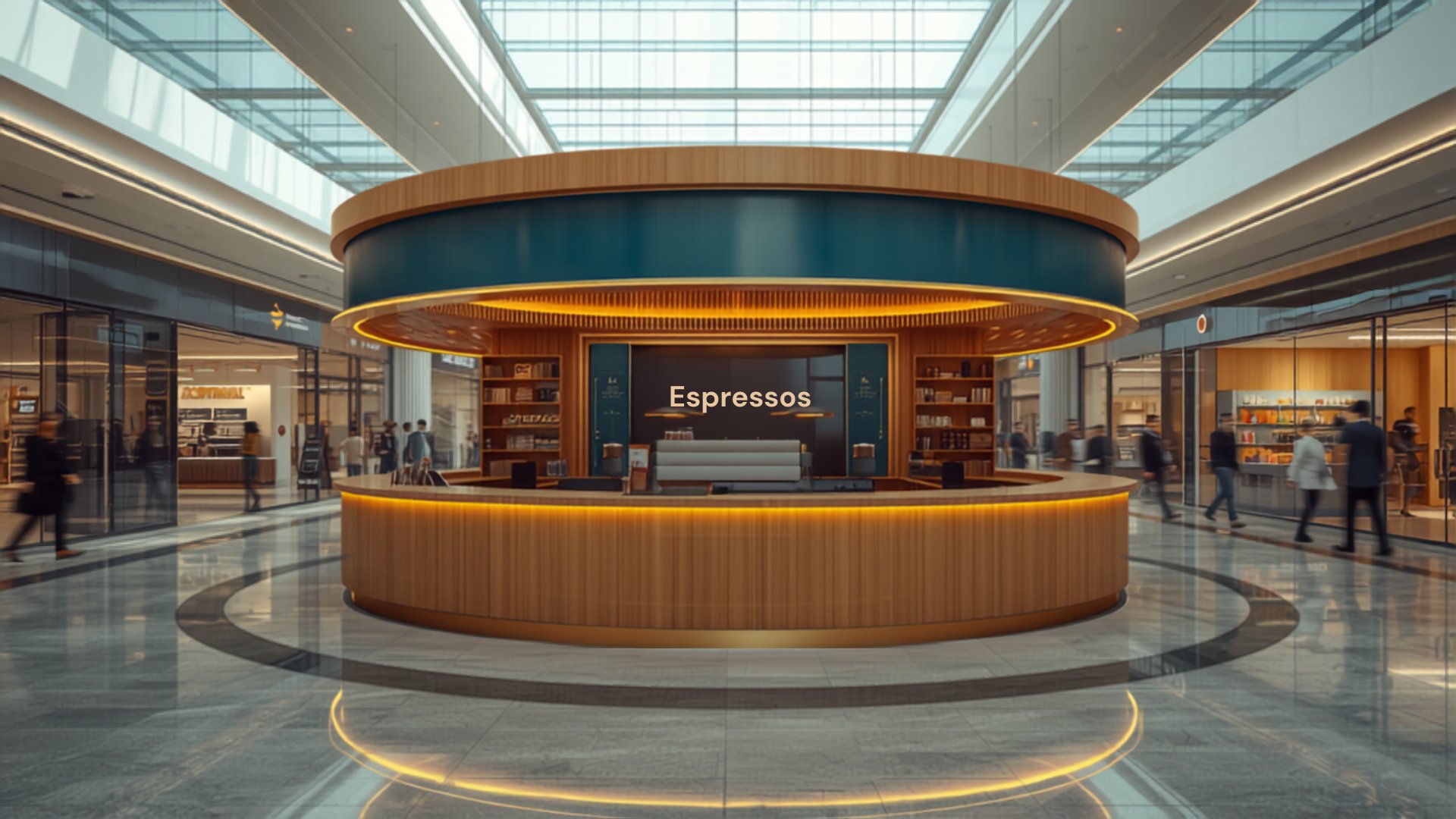

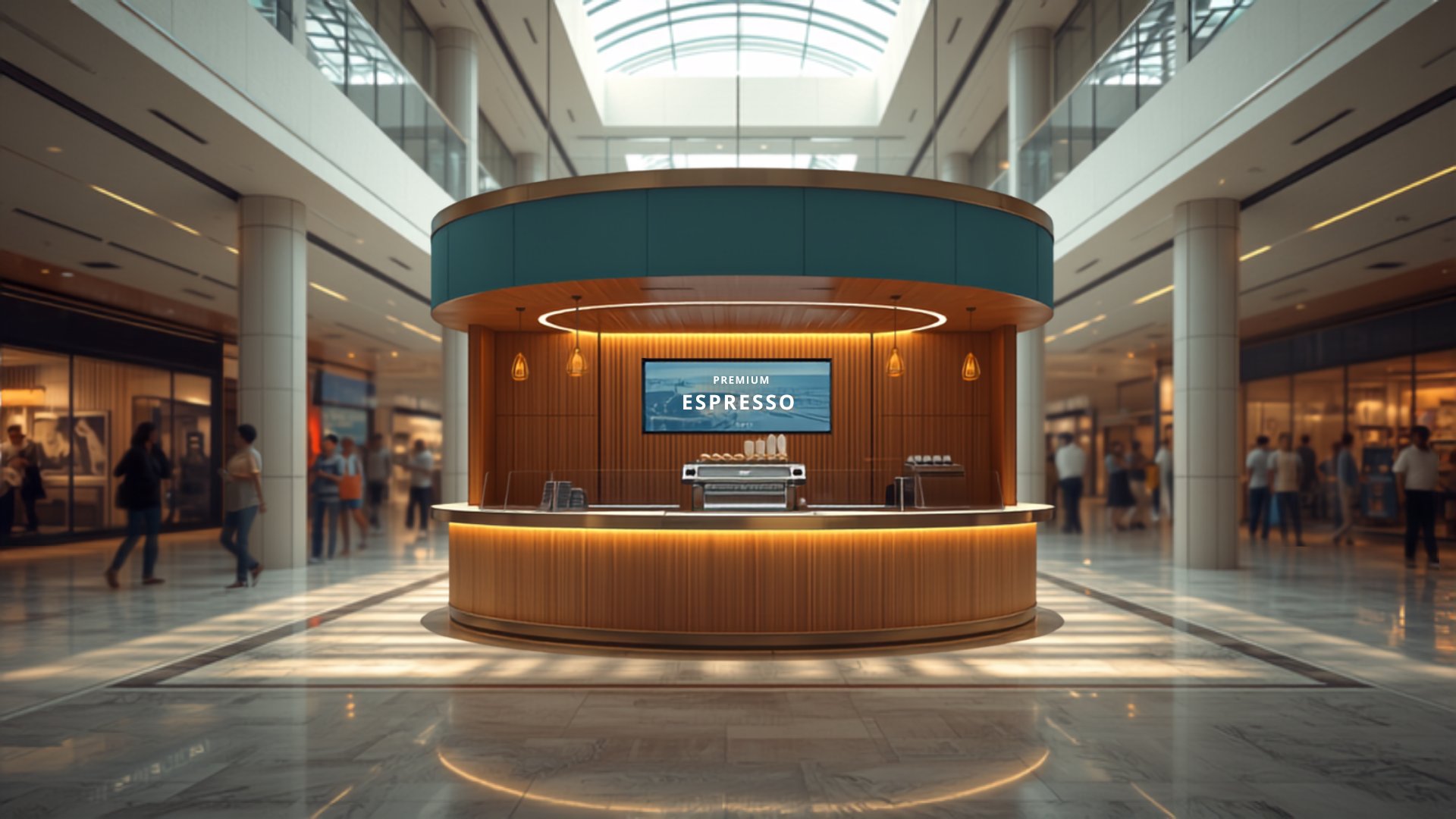

The Espresso Island Bar is a 360-degree coffee kiosk engineered for high-footfall mall atriums and high-street plazas. It is designed for two kinds of operators: first-time café entrepreneurs who want a proven, low-risk entry into the coffee business, and established coffee brands adding satellite outlets without the cost and commitment of a full store.

The retail problem it solves is simple. A conventional café fit-out in an Indian metro typically demands ₹25–60 lakh in capital and 60–90 days of civil work, licensing, and interiors before the first cup is sold. The Espresso Island Bar compresses that into a prefabricated 80 sq ft island, manufactured off-site at our Mumbai facility in 12–15 working days and installed overnight. The open-island format means customers approach from every direction — in atrium locations this typically captures footfall that an inline store frontage never sees.

Zoning

• Service zone: Espresso machine bay with grinder station, sized for standard 2-group commercial machines, positioned so the barista faces the dominant footfall direction.
• Display zone: Curved glass bakery display case at the counter's approach side — impulse purchases lift average order value.
• Transaction zone: POS corner with card terminal shelf and pickup ledge, separated from the ordering point to keep the queue moving.
• Storage: Under-counter refrigeration, dry storage cabinets, and a concealed waste-water tank bay, all accessible from the service side only.

Customer flow

The counter height steps from 900mm on the service side to a 1,100mm customer ledge, creating a natural lean-and-wait perch. Circulation is fully 360-degree with no dead face — every elevation carries either display, menu, or brand fascia.

Build specification

• Structural frame: Powder-coated MS box-section frame, engineered for point-load of commercial espresso equipment
• Carcass: BWP-grade plywood with high-pressure laminate (HPL) exterior cladding; warm wood-tone standard palette
• Counter surface: Quartz or solid-surface (Corian-class) worktop — heat and stain resistant, seamless joints
• Accents: Brushed brass-finish stainless steel trims and foot-rail
• Signage band: Backlit acrylic fascia with routed brand lettering, LED module illumination
• Lighting: Warm-white LED strip under the counter overhang plus pendant task lights over the service zone
• Base: Anti-skid plinth with concealed levelers for uneven mall flooring

Every structural and finish component is fabricated in-house — metal frame, carpentry, laminate pressing, and signage — which is how we hold both the 15-day timeline and quality tolerances.

• Electrical: 3–5 kW single-phase load, ISI-marked components, concealed cable management with a single-point mall power connection
• Water: Inline water inlet with filtration provision; concealed fresh + waste water tanks where mall drainage tie-in is unavailable
• Food safety: FSSAI-compliant food-contact surfaces, washable finishes, covered display
• Fire: Fire-retardant grade laminates and wiring conforming to commercial norms
• Mall compliance: Designed to standard mall kiosk guidelines — height limits, sightline rules, material and finish requirements — and we handle the mall design-approval submission as part of the project

• Size variants: 8×6 ft compact through 12×10 ft flagship
• Finish palettes: Wood + brass (standard), monochrome matte, or full brand-color fascia
• Brand application: Routed backlit logo, printed fascia graphics, menu board integration
• Tech add-ons: Digital menu screens, self-order kiosk POS, QR-order station
• Format add-ons: Cold-brew tap module, seating ledge with stools, retail merchandise shelf for beans and drinkware

Why this works

Capital efficiency. At ₹3–6 lakh, the kiosk costs a fraction of a café store fit-out, and it is a movable asset on your books — closer to equipment than to leasehold improvement sunk into someone else's property.

Speed to revenue. 12–15 days of manufacturing and one night of installation means you are trading within three weeks of sign-off, against a 60–90 day store build.

Revenue per square foot. Coffee is one of the highest-margin, highest-frequency categories in mall retail, and an 80 sq ft island in an atrium position often outperforms inline cafés several times its size on a per-square-foot basis.

Reversibility. If a location underperforms, the kiosk relocates. A failed store fit-out is written off; a kiosk moves to the next mall.

Frequently asked questions

How much does a coffee kiosk in a mall cost?
The Espresso Island Bar sits in the ₹3–6 lakh band depending on size, finishes, and equipment provisions. Mall rentals and licenses are separate and vary by property.

How do I get mall permission for a kiosk?
Malls lease kiosk locations through their leasing teams and require a design-approval submission. We prepare the technical drawings and compliance documentation for that submission as part of the project.

How long from order to opening?
12–15 working days of manufacturing after design sign-off, plus one overnight installation. Most clients are operational within three weeks.

Can the kiosk be moved to another location later?
Yes. The modular frame disassembles into transportable sections and can be reinstalled at a new site, typically within two days.

What do I need from the mall for utilities?
A single-point power connection of 3–5 kW. Water can run from a mall tie-in or from the kiosk's concealed tank system.

Do you manufacture in bulk for franchise rollouts?
Yes — the design is standardized for repeat manufacturing, and our facility handles multi-unit orders with identical specifications across cities.
